TXK jib crane is a kind of small and medium-speed lifting equipment developed recently.

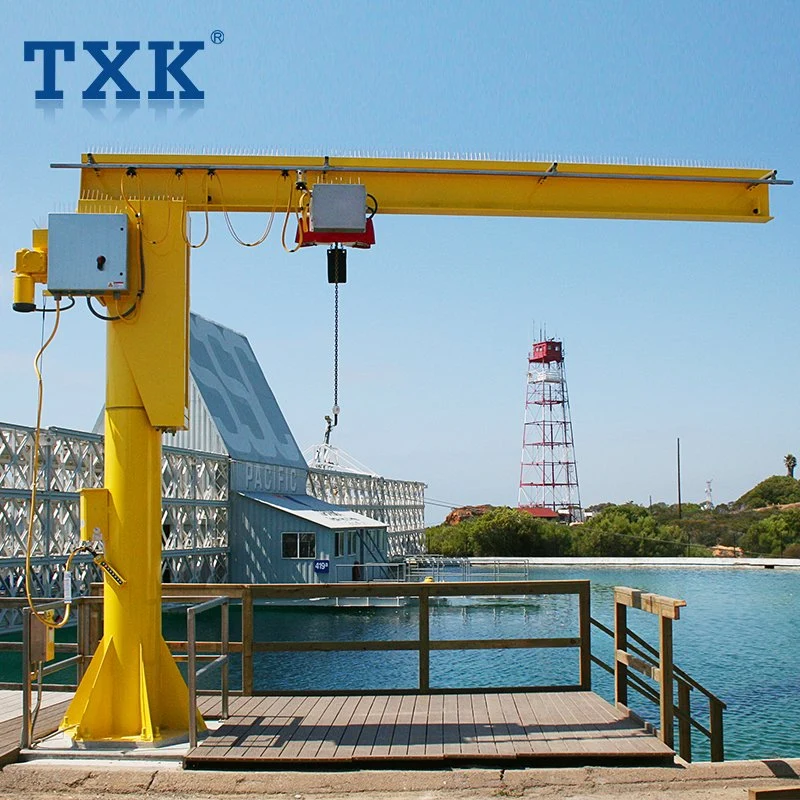

It is widely used in mines, workshop, warehouse , wharf,etc.

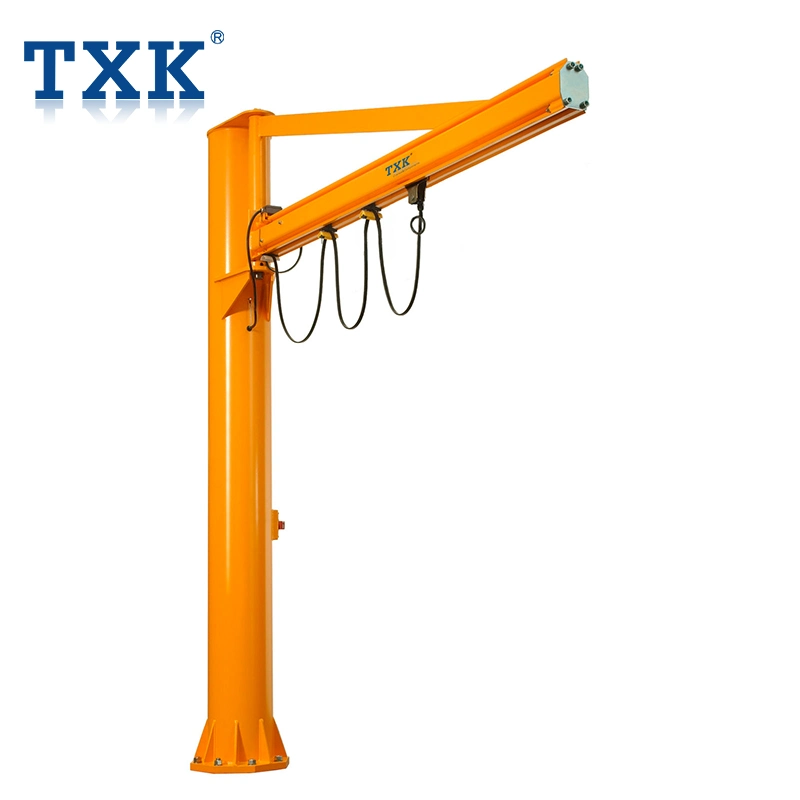

Column mounted jib crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects.
Fixed column slewing jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.
Technical details:
Model | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 | BZ8 | BZ10 | |
Lift Capacity (t) | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | |
Max. Lift Height (m) | 3 | 3 | 3 | 4 | 4 | 6 | 8 | |
Slew Angle (°C) | 180/270/360 | |||||||
Lift Speed (m/min) | 4;10;8 | 5;10;8 | 8 | 8 | 8 | 8 | 8 | |
1;2.5;0.8 | 1.25;2.5 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||
Level Travel Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
Slewing Speed (r/min) | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 | 0.6 | 0.6 | |
Electric hoist | wire rope hoist or electric chain hoist | |||||||
Power supply | 220~440V,50/60HZ,3phase or customized | |||||||
Control mode | Push button control or remote control | |||||||
Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands. |
Jib crane drawing:
Advantage and feature :
1. Rated Lifting capacity: 0.5~20t.
2. Arm length: 2~10m (Can be designed by customers)
3.Two types : BZ model(light medium) and BZD model(heavy duty medium)
4. Working Temperature: -25~+40°C
5. Lifting mechanism: Electric hoists or manual hoist
6. Slewing Mechanism: Electric motor or Manual control
7. Main Material: Q235B Mn Steel
8. Slewing angle are 90, 180, 270, 360 degree is optional
Company Profile:
"TXK" was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience.
We provide quality, safe and stabe products to meet the highest industrial standards. We are ISO9001:2008 certified company.
our products are GS,CE certified, serving all spheres of industry in the world.
Our bran "TXK" is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products.
With our Professional R&D team, we are able to provide customization services with the most professional quality and
never stop meeting the highest standard of safety.
"TXK" will never stop being as an innoative manufacturer. We will continue to develop and extend our products range
with high quality, safety standard and long life usage.
7 Reasons To Trust TXK Hoist:
1.LARGEST FACTORY AND PRODUCTION CAPABILITY - TXK factory is the biggest factory covering more than 56,000 square meter territory.
2.LONGEST HISTORY ANDLONGFEVITY - TXK is one of the oldest established electric chain hoist manufacturer in China, with almost 20 years.
3.RICHEST EXPERIENCE IN WORLD BUSINESS - TXK has more than 10 years experience on international trade business.
4.WEDEST PRODUCTS AND SERVICE PROVIDING - TXK can provide widest products items include electric & manual lifting equipment.
5.FASTEST LEAD TIMES - TXK factory is equipped with most efficient producing line which handled by skillful workers.
6.FULLEST CERIFICATIONS - TXK factory and products are well certified by CE, GS, TUV, ISO, SGS, ext.
7.HIGHRST REPUTATION - TXK products are well sold in more than 50 countries.
Packages:
1.Electrical parts and hoist are packed by plywood box
2.Main beam,end beam,platform railing and others are packed in plastic woven cloth
FAQ:
1. Are you manufacturer or trade Company?
We are a factory founded in 2006 with trade team for international service.
2. How about sample & MOQ policy?
Welcome sample order. MOQ can be 1 set.
3. what is your lead time for your goods?
Normally 10days after confirmed order. 7 days could be available for some items in sufficient stock and standard requirements, and 20 days during new year and hot season ( Jan to March).
4.What should I provide when inquiry?
The more information you provide, the accurate solution we can prepare for you!
A- Capacity ?
B- Arm Length ?
C- Manual or electric type?
D- Lifting height?
E- Electric hoist or manual hoist ?
F- FOB ,CFR or CIF price , which one ?
If you are interested with our products, please don't hesitate to contact us.
You can tell me the items you like, Then I can send you accurate quotation soon, including additional discount!
