Main specification and characters of 2m3 self loading concrete mixer
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck

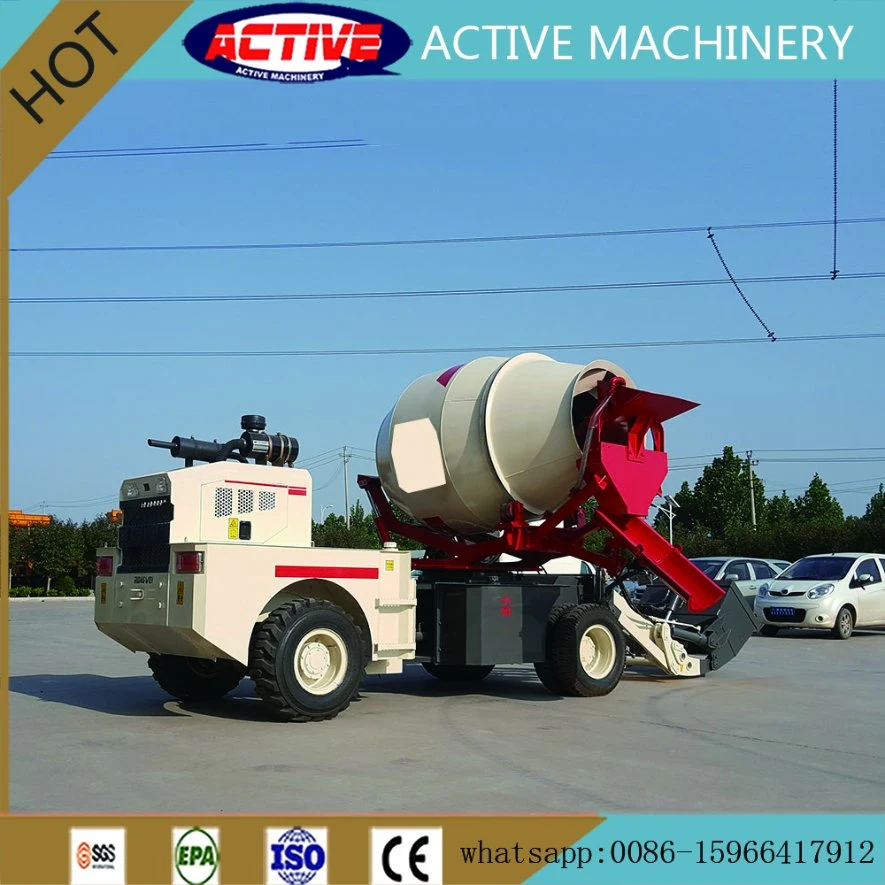

Main photo:
Main specifications:
1, Yunnei engine 76KW.
2, Concrete productivity 2.0 cbm
3, With 270°rotation function
4, 4 batches per hour;
5, double reverse camera .
6, Air conditioner
7, Automatic weighting system
8, Hydraulic Torque Converter Transmission,
9, 4 wheel drive , articulation steering.
10, 20.5/70-16 tyres .
11, Korea Hydraulic swing motor ,
12, automatic upper water system ,with pump and pipes
13, preheater for engine ,
14, heater in Cabin ,
15, warning light, back sound, radio, fan, hand brake, extinguisher, window hammer, Easy damaged spare parts ,tool box.
16. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
17. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
18. It has independent water supply system, which can ensure the high quality of concrete.
19. It just need one operator to drive, load, and mix raw material while moving it.
| Name | Item | Spec | ||
| Overall machine | Net weight | 6080kg | ||
| Overall size | 6010*2100*2700(3928)mm | |||
| Transmission | Full Hydraulic | |||
| 4WD | ||||
| Brake | Air brake | |||
| Chassis | Off-road | |||
| Tread | 1900 | |||
| Wheelbase | 2200mm | |||
| Loader bucket | Capacity | 0.4cbm | ||
| Control | Hydraulic | |||
| Tilt Angle | 30% | |||
| Speed | High speed | 0-20KM/H | ||
| Low speed | 0-7KM/H | |||
| Min turning radius | 6.5m | |||
| Tyre Model | 20.5/70-16 | |||
| Engine | Type | Yunnei | YN38GBZ | |
| Rated Power/RPM | 76KW/2200RPM | |||
| Max Torque/RPM | 265N.M/3200RPM | |||
| Cylinder | 4 | |||
| Starter | Electric | |||
| Cooling type | Water Cooling | |||
| Maxing Drum | Drum full capacity | 2.8m3 | ||
| Drum work capacity | 2.0m3 | |||
| Bank angle | 16° | |||
| Self rotation angle | 270° | |||
| Rotation speed | 15R/min | |||
| Chute | Swing Angle | ≥60° | ||
| Angle control | Hydraulic | |||
| Size | Long :176CM | |||
| Short :40CM | ||||
| Loader | Weight model | Computer control | ||
| Concrete standard | C15.C20.C25.C30 | |||
| Accuracy | Cement | ≤±2%/time | ||
| Relative error | ≤±3%/time | |||
| Water | ≤±1%/time | |||
| Additive | ≤±1%/time | |||
| Admixture | ≤±2%/time | |||
| Loader control | Hydraulic control 4 way stick | |||

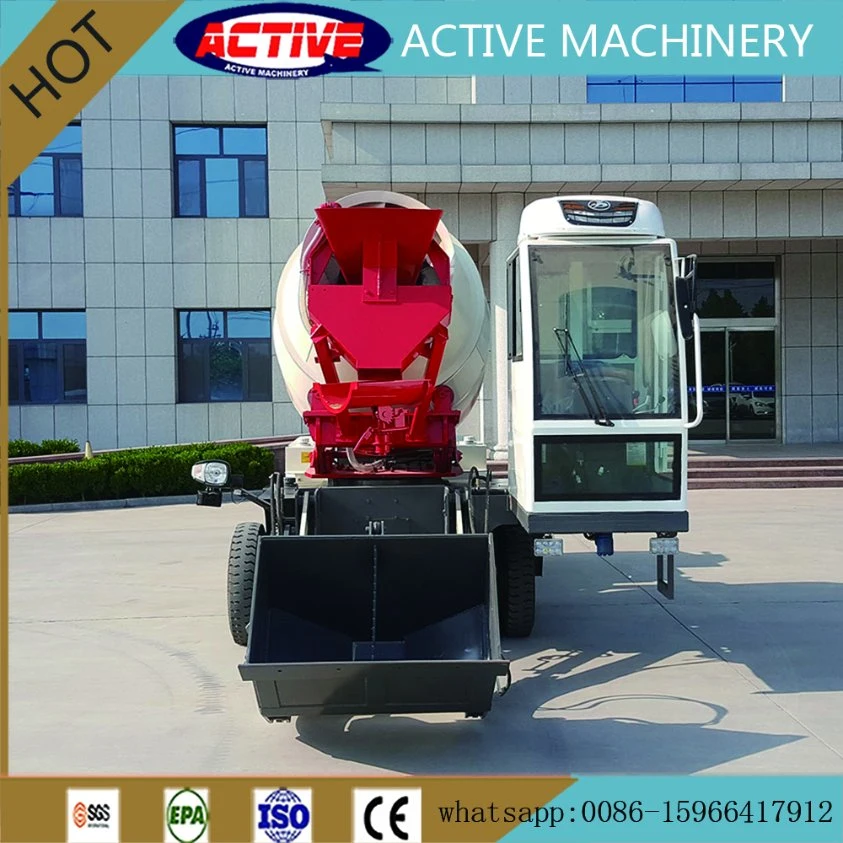

Product show:
