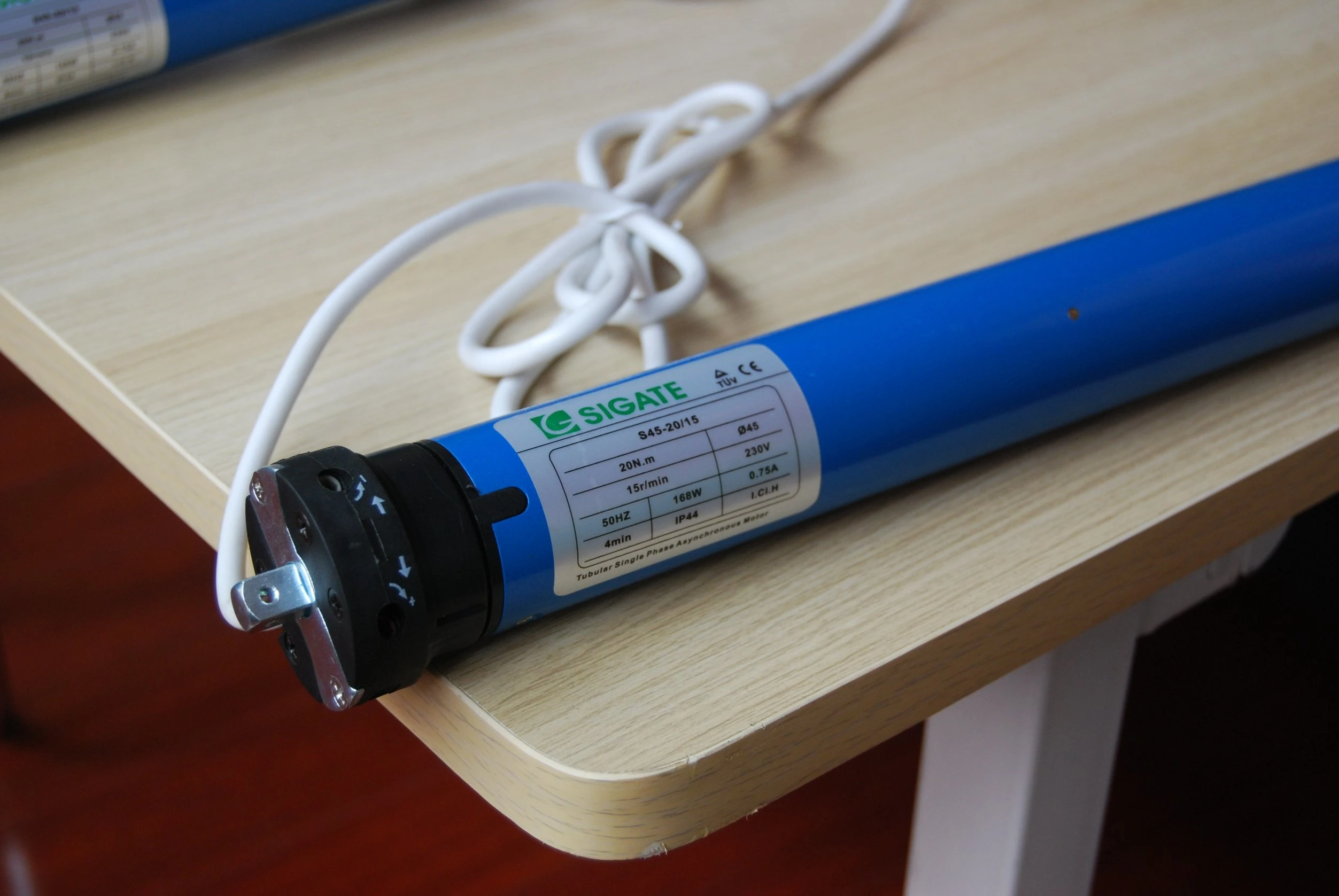

Mechanical Limited Switch
|Serie Ø45 For Octagonal Tube 60mm, Standard Type|
|Articolo Item||Modello Model||Rulli Oct tube||Alimentazione Power Supply||Coppia Torque||Velocita Speed||Potenza asscrbita Absorbed power||Corrente assorbita Current consumption||Giri finecorsa Limit Switch Rotation||Misura|
|mm||Nm||giri/min. rpm||W||A||C (mm)|
|Tubular motor Series|
|35 Series||S35||35mm||Oct-40||Standard+Mechanical Limited Switch||6~10|
|S35R||35mm||Oct-40||Remote Control + Mechanical Limited Switch||6~10|
|S35E||35mm||Oct-40||Remote Control + ELectronic Limited Switch + Automatic Switch-off||6~10|
|45 Series||S45||45mm||Oct-60||Standard+Mechanical Limited Switch||20~60|
|S45M||45mm||Oct-60||Manual Override + Mechanical Limited Switch||20~60|
|S45R||45mm||Oct-60||Remote Control + Mechanical Limited Switch||20~50|
|S45RM||45mm||Oct-60||Manual Override +Remote Control + Mechanical End Stroke||20~50|
|S45E||45mm||Oct-60||Remote Control + ELectronic Limited Switch + Automatic Switch-off||20~50|
|59 Series||S59||59mm||Oct-70||Standard+Mechanical Limited Switch||60~150|
|S59M||59mm||Oct-70||Manual Override + Mechanical Limited Switch||60~150|
|S59R||59mm||Oct-70||Remote Control + Mechanical Limited Switch||60~120|
|92 Series||S92M||92mm||/||Manual Override + Mechanical Limited Switch||170-550|
|We also accept customized requirements !|
Motor Type Explanation
A. Standard Type: Means the motor can be connected to a switch with power cable.
B. Remote Control Type: There is a built-in receiver in the motor, and can be controlled by a remote controller or a wall type radio transmitter.
C. Manual Override: Can be understood as there is a gear winch in the head of the motor. It is designed in case there is an electricity cut-off, the motor can still work. It can be driven up and down by a hand crank.
D. Mechanical Limited Switch: The limited travel distance of the motor was adjusted by a rod tool.
E. Electronic Limited Switch: the limited travel distance of the motor is adjusted by the remote controller electronically.
IP44 : Protection class (It means that it can prevent solid blocks with diameter over 1mm from invading the motor tube and prevent liquids splashed in all directions0
Torque: It is related to the load capacity and the radius of the driving tube. Torque (N.m) =Radius(mm) X load(kg)/100
< Our Advantages >
Warranty & After-sales Service
We offer 5 years after-sales service compared to 1 year other suppliers can provide .
We have 100% motors inspected and tested before packing.
We've been in roller shutter area for more than 15 years , and we specialize in tubular motor for window & door use .
< FAQ >
(1) Q: Do you offer OEM service?
A: Yes .
(2) Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy .Or irrevocable L/C.
(3) Q: What is your lead time?
A: Normally about 25-30 days upon deposit or original L/C.
(4) Q: What certificates do you have?
A: We have LVD, EMC. And we can apply for specific certificate for different country if it's necessary .
(5) Q: Is it possible to visit your factory?
A: Sure. We welcome you to come to china, just kindly keep us informed a few days in advance so that we can check our schedule to see if we are available then.
(6) Q: Can I get some samples?
A: Yes , but first we need to check the stock . Sample and delivery fee can be refund if an official order is placed .
(7) Q: Is there a MOQ for your motors?
A: Normally our MOQ is between 500-1000 pcs for different models after sample approval. Smaller orders please contact us to let us see if the stock is available .
Ningbo Sigate Motor Co.,Ltd is located in Ningbo and is a production base under SIGATE GROUP, specialized in production and quality control of full range of tubular motors, central motors, side motors, etc.
With 16-year experience in roller shutter field, we, SIGATE GROUP, can professionally provide you with :
1. Full range of roller shutter accessories.
2. Tubular motors 35mm, 45mm, 59mm and 92mm, Central Motors.
3. Insect Screens System and components.
4. Extruded Aluminum Profiles.
Catalog download link:
We're always at your service !
