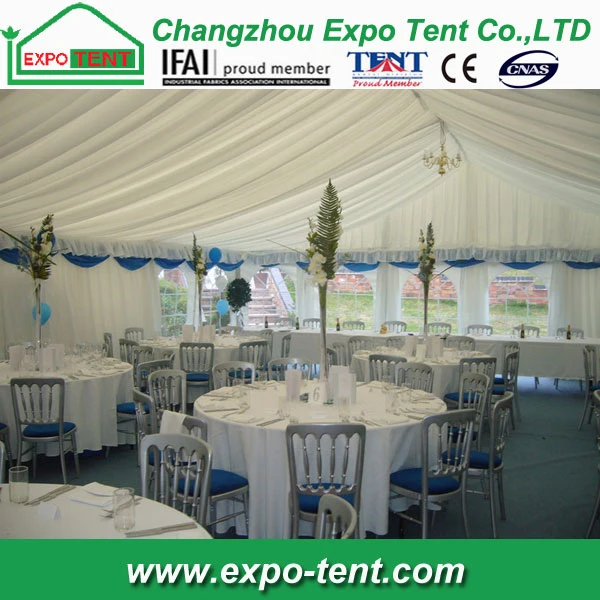

Wedding party tents in clear-span width of 10m to 40m all with a standard side height 4m. Party Tents are modular by design and may be extended or decreased in 3m section. The main frameworks (legs and roof beam)are manufactured in 2 channels or 4 channel hard pressed extruded Aluminium .The sidewalls and roof covers are manufactured of 650G - 850G/m2 PVC-coated polyester textile flame retardant to M2.The fabric are available in blockout or transparent.
1.SPECIFICATION
1) Span width:Any size between 3m and 40m
2) Length:No limite, extended by 5m, such as 20m, 25m, 30m 40m^
3) Bay distance:3m / 5m
4) Eave height:2.5m / 4m
2.FRAME PART
1) The main parts are made of aluminum alloy and the spare parts are made of steel.
2) All aluminum components are technically anodized and all steel parts are well hot-DIP galvanized.
3.COVER PART
1) The roof and sidewall fabric cover are made of double PVC coated polyester textile.
2) The fabric is good at waterproof and UV resistant.
3) The fabric is flame retardant to DIN4102, M2, Grade B1.
4) The weight of fabric is from 660g/sq.M to 850g/sq.M.
4.OPTIONAL ACCESSORY
1) Sidewall with clear PVC window.2) Rain gutter 3) Glass door and Glass wall.
4) Lining for decorating the tent.
5.FEATURE
1) Easy to assemble and dismantle.
2) Small storage volume.
3) No pole inside, 100% space is available.
1.SPECIFICATION
1) Span width:Any size between 3m and 40m
2) Length:No limite, extended by 5m, such as 20m, 25m, 30m 40m^
3) Bay distance:3m / 5m
4) Eave height:2.5m / 4m
2.FRAME PART
1) The main parts are made of aluminum alloy and the spare parts are made of steel.
2) All aluminum components are technically anodized and all steel parts are well hot-DIP galvanized.
3.COVER PART
1) The roof and sidewall fabric cover are made of double PVC coated polyester textile.
2) The fabric is good at waterproof and UV resistant.
3) The fabric is flame retardant to DIN4102, M2, Grade B1.
4) The weight of fabric is from 660g/sq.M to 850g/sq.M.
4.OPTIONAL ACCESSORY
1) Sidewall with clear PVC window.2) Rain gutter 3) Glass door and Glass wall.
4) Lining for decorating the tent.
5.FEATURE
1) Easy to assemble and dismantle.
2) Small storage volume.
3) No pole inside, 100% space is available.
| Product specification | Span width(m) | Bay spacing(m) | Eave height(m) | Ridge height(m) | Main frame profile (mm) |
| SBLP-3 | 3 | 3 | 2.5 | 3 | 48x84x3.0 |
| SBLP-6 | 6 | 3 | 2.5 | 3.5 | 48x84x3.0 |
| SBLP-8 | 8 | 3 | 2.5 | 3.9 | 48x84x3.0 |
| SBLP-10 | 10 | 3 | 2.5 | 4.3 | 48x84x3.0 |
| SBLP-15 | 15 | 5 | 4 | 6.4 | 150x108x3.0 |
| SBLP-18 | 18 | 5 | 4 | 6.9 | 203x112x4.5 |
| SBLP-21 | 21 | 5 | 4 | 7.4 | 203x112x4.5 |
| SBLP-25 | 25 | 5 | 4 | 8.0 | 203x112x4.5 |
| SBLP-30 | 30 | 5 | 4 | 8.8 | 113x259x5.5 |
