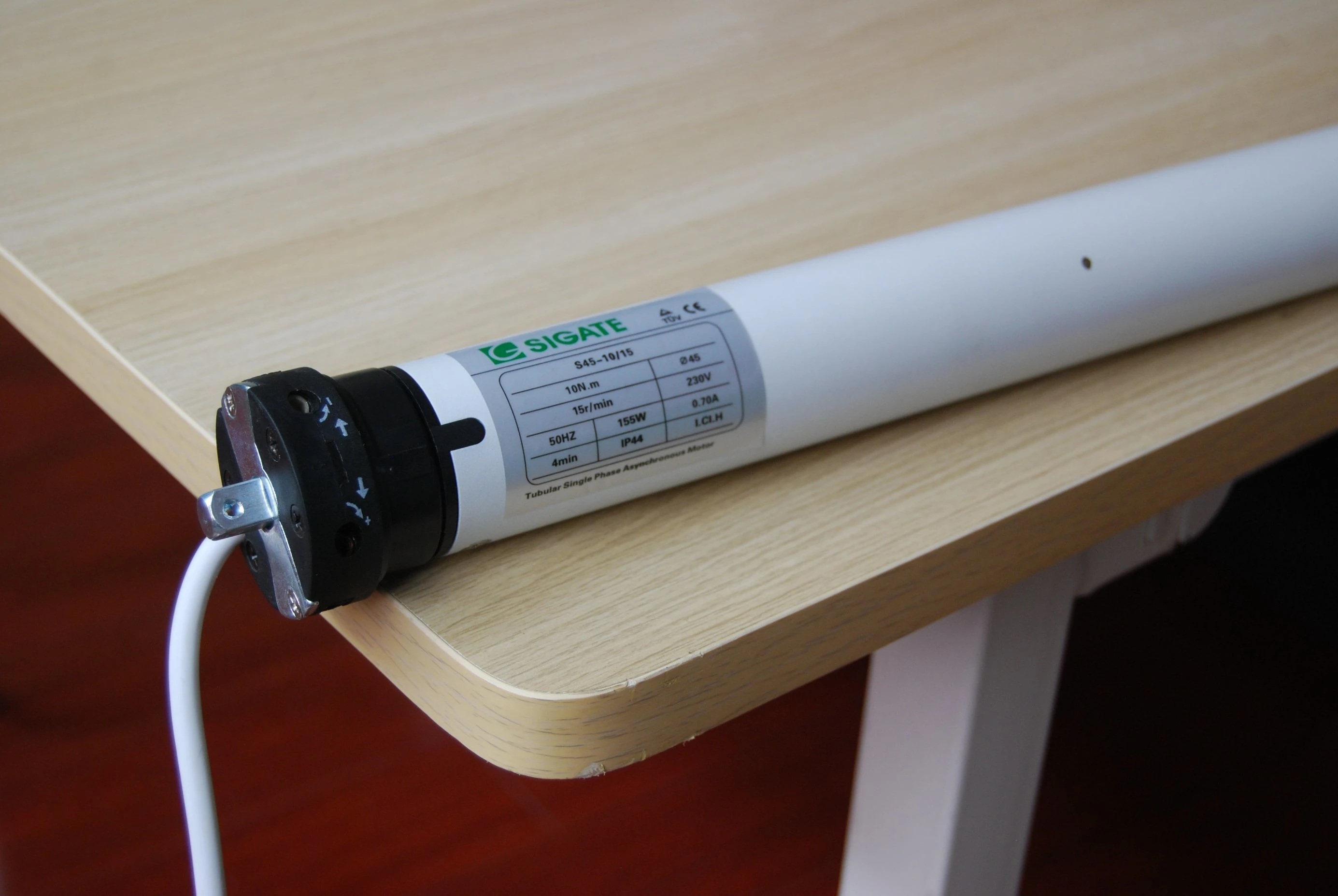

Standard Type
Mechanical Limited Switch
| Serie Ø45 For Octagonal Tube 60mm, Standard Type | |||||||||
| 45 | |||||||||
| Articolo Item | Modello Model | Rulli Oct tube | Alimentazione Power Supply | Coppia Torque | Velocita Speed | Potenza asscrbita Absorbed power | Corrente assorbita Current consumption | Giri finecorsa Limit Switch Rotation | Misura dimension |
| mm | Nm | giri/min. rpm | W | A | C (mm) | ||||
| 300.620.15 | S45-20/15 | 60 | 230V AC/50Hz | 20 | 15 | 156 | 0.68 | 22 | 424 |
| 300.630.15 | S45-30/15 | 60 | 230V AC/50Hz | 30 | 15 | 204 | 0.9 | 22 | 464 |
| 300.650.12 | S45-50/12 | 60 | 230V AC/50Hz | 50 | 12 | 220 | 1.00 | 22 | 630 |
| 300.660.10 | S45-60/10 | 60 | 230V AC/50Hz | 60 | 10 | 265 | 1.20 | 22 | 630 |
| Tubular motor Series | |||||
| Series | Model | Dia | applied | Type | Torque N.m |
| 35 Series | S35 | 35mm | Oct-40 | Standard+Mechanical Limited Switch | 6~10 |
| S35R | 35mm | Oct-40 | Remote Control + Mechanical Limited Switch | 6~10 | |
| S35E | 35mm | Oct-40 | Remote Control + ELectronic Limited Switch + Automatic Switch-off | 6~10 | |
| 45 Series | S45 | 45mm | Oct-60 | Standard+Mechanical Limited Switch | 20~60 |
| S45M | 45mm | Oct-60 | Manual Override + Mechanical Limited Switch | 20~60 | |
| S45R | 45mm | Oct-60 | Remote Control + Mechanical Limited Switch | 20~50 | |
| S45RM | 45mm | Oct-60 | Manual Override +Remote Control + Mechanical End Stroke | 20~50 | |
| S45E | 45mm | Oct-60 | Remote Control + ELectronic Limited Switch + Automatic Switch-off | 20~50 | |
| 59 Series | S59 | 59mm | Oct-70 | Standard+Mechanical Limited Switch | 60~150 |
| S59M | 59mm | Oct-70 | Manual Override + Mechanical Limited Switch | 60~150 | |
| S59R | 59mm | Oct-70 | Remote Control + Mechanical Limited Switch | 60~120 | |
| 92 Series | S92M | 92mm | / | Manual Override + Mechanical Limited Switch | 170-550 |
| We also accept customized requirements ! | |||||
Motor Type Explanation
A. Standard Type: Means the motor can be connected to a switch with power cable.
B. Remote Control Type: There is a built-in receiver in the motor, and can be controlled by a remote controller or a wall type radio transmitter.
C. Manual Override: Can be understood as there is a gear winch in the head of the motor. It is designed in case there is an electricity cut-off, the motor can still work. It can be driven up and down by a hand crank.
D. Mechanical Limited Switch: The limited travel distance of the motor was adjusted by a rod tool.
E. Electronic Limited Switch: the limited travel distance of the motor is adjusted by the remote controller electronically.
Specification Explanation:
IP44 : Protection class (It means that it can prevent solid blocks with diameter over 1mm from invading the motor tube and prevent liquids splashed in all directions0
Torque: It is related to the load capacity and the radius of the driving tube. Torque (N.m) =Radius(mm) X load(kg)/100
< Our Advantages >Warranty & After-sales Service
We offer 5 years after-sales service compared to 1 year other suppliers can provide .
Excellent Quality
We have 100% motors inspected and tested before packing.
Professional service
We've been in roller shutter area for more than 15 years , and we specialize in tubular motor for window & door use .
< FAQ >
(1) Q: Do you offer OEM service?
A: Yes .
(2) Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy .Or irrevocable L/C.
(3) Q: What is your lead time?
A: Normally about 25-30 days upon deposit or original L/C.
(4) Q: What certificates do you have?
A: We have LVD, EMC. And we can apply for specific certificate for different country if it's necessary .
(5) Q: Is it possible to visit your factory?
A: Sure. We welcome you to come to china, just kindly keep us informed a few days in advance so that we can check our schedule to see if we are available then.
(6) Q: Can I get some samples?
A: Yes , but first we need to check the stock . Sample and delivery fee can be refund if an official order is placed .
(7) Q: Is there a MOQ for your motors?
A: Normally our MOQ is between 500-1000 pcs for different models after sample approval. Smaller orders please contact us to let us see if the stock is available .
Ningbo Sigate Motor Co.,Ltd is located in Ningbo and is a production base under SIGATE GROUP, specialized in production and quality control of full range of tubular motors, central motors, side motors, etc.
With 16-year experience in roller shutter field, we, SIGATE GROUP, can professionally provide you with :
1. Full range of roller shutter accessories.
2. Tubular motors 35mm, 45mm, 59mm and 92mm, Central Motors.
3. Insect Screens System and components.
4. Extruded Aluminum Profiles.
