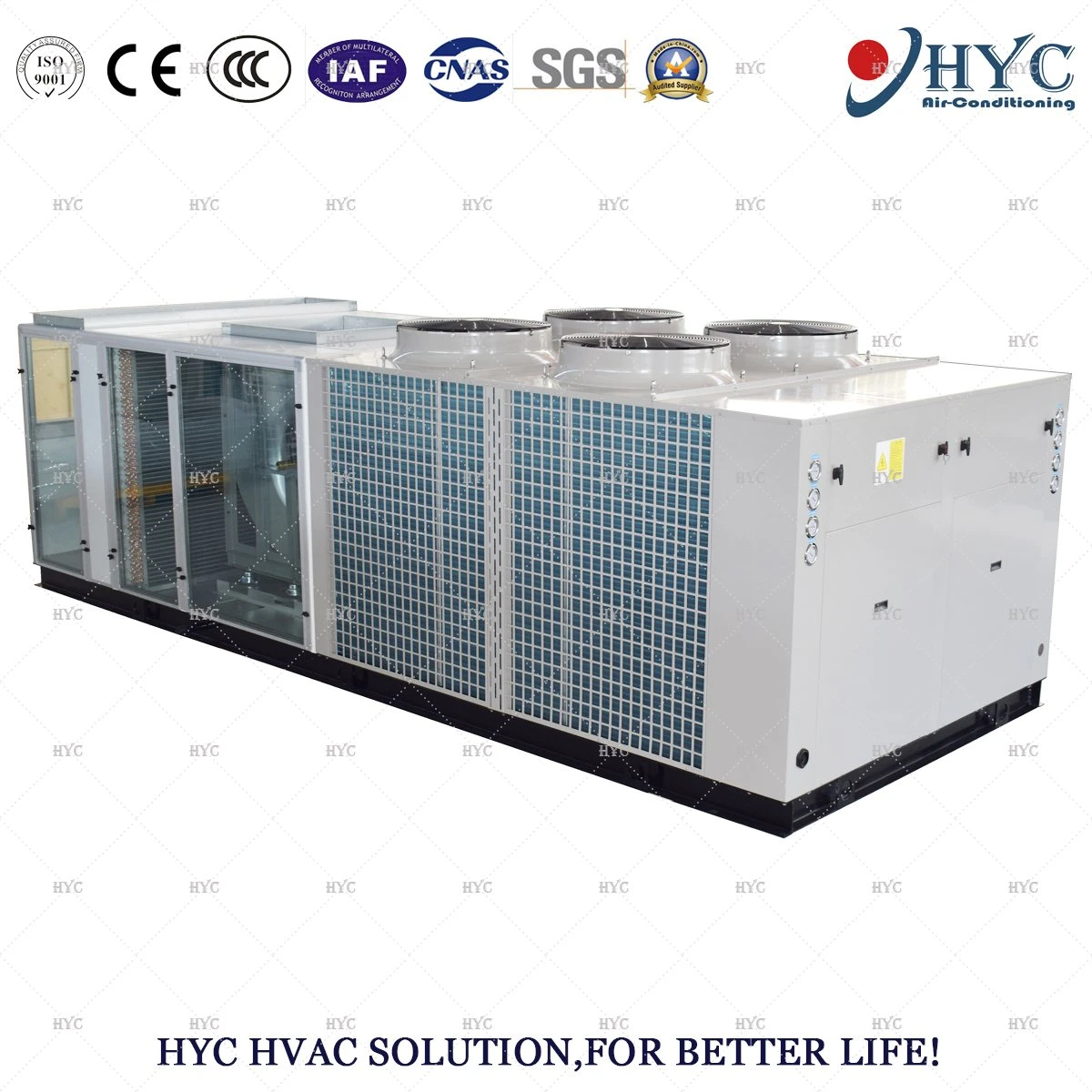

Rooftop Packaged Air Conditioner Price/ Heating and Cooling System Rooftop Unit

Sincerely welcome to visit our factory at your convience. Customer could witness their order production real conditions by online videos or photos at any time during production.


INTEGRAL DESIGN AND EASY INSTALLATION

The package rooftop has a integral design. It is supplied as a complete package ready for operation, with no extra controls or other items to be installed. The units have a single power point entry with simple connections.
Quick start-up is assured once installation is completed, as each rooftop unit is manufactured in an ISO9001:2000 listed facility to guarantee quality. All units are tested at the factory to provide reliable start up.
HIGHLY QUALITY COMPONENTS AND RELIABLE PERFORMANCE
All series rooftop pacakged units use high-effiency scroll compressor and high quality world known brand cooling parts, which ensures units' reliable performance.
STANDARD FEATURES
• Easily accessible system components
• Factory micro-programmed LED controller.
• Heavy duty mounting chassis for the whole unit with lifting holes
• BMS
• Anti-vibration mounting compressor and centrifugal fan
• Weather-proof, polyester epoxy powder electrostatic paint oven-baked finish for sheet metal and base frame
• Compressor, fan motor inner protect
• Treated anti-corrosion protection for coils (blue fins) for copper/aluminum coils condensor and evaporator
OPTIONAL
• Optional supply/return air configurations, optional bottom supply and return type.
• Copper fin condensor and evporator for some area need special anti-corrision
• Blygold paintting for condensor and evporator for some area need special anti-corrision
• Stainless steel body cover and drain pan
• Economizer with fresh, return air dampers and fresh air hood
• Control device for operation of outdoor units at low ambient temperatures
BMS devices
•Tropical climate design
•Roof curb
•Pre-filter;secondary filter;hepa filter
•Hot water coil
•Electrical heater
Model 003004005006007008010012
Nominal cooling capacitykW10.114.2 17.4 20.224.429.234.841.2
Nominal heating capacitykW10.415.0 18.020.824.830.436.042.5
Rated power inputkW3.495.11 5.83 7.23 8.35 10.33 12.2713.52
Power supply/380~415V / 3Ph / 50Hz
CompressorQuantityNr.11122222
Input powerkW2.69 4.04 4.66 5.386.58.089.3210.58
Input currentAmps5.00 7.11 8.33 1012.3814.2216.6620.18
Type/Scroll
Evaporator sectionFan quantityNr.1 1 1 1 1 1 11
Air flowm3/h1900 2800 3140 4150 4500 5500 69007500
Fan type/Centrifugal fan
Drive type/Direct drive (belt drive optional)
ESPPa150 150 180 150 180 180 200200
Condensor sectionFan quantity/1 1 1 1 1 1 22
Fan type/Axial fan
Unit dimensionLengthmm1340 1583 1583 192119212073 23002533
Widthmm991 991991 1397 1397 1469 16261826
Heightmm880 880 880 10781078 1001 11021167
Net weightkg200 210 220 340 360 380 700750
Sound pressure levelsdB(A)65 65 65 65 67 68 6868
Model 015020025030035040045055 070
Nominal cooling capacitykW52.471.086.097.0124.0140.4158.0188.0 240.0
Nominal heating capacitykW53.273.087.098.2128.0144.0162.0192.0248.0
Rated power inputkW19.04 25.2630.434.545.850.5255.470.486.2
Power supply/380~415V / 3Ph / 50Hz
CompressorQuantityNr.222244444
Input powerkW13.7418.2620.724.732.2436.5241.449.465.4
Input currentAmps25.832.5638.0449.859.2865.1676.0899.6110.96
Type/Scroll
Evaporator sectionFan quantityNr.1 1 1 1 1 11 1 1
Air flowm3/h10000 14000 15000 16000 23200 2600029500 32000 47000
Fan type/Centrifugal fan
Drive type/Belt drive (direct drive optional)
ESPPa220 250 250 250320 320360 360 420
Condensor sectionFan quantity/2 2 2 244444
Fan type/Axial fan
Unit dimensionLengthmm2533 3400 3684 3790 5100580058005800 5800
Widthmm1820 2200 2200 2220 2239223922392255 2235
Heightmm141715901590 1614 1668 17281728 2028 2028
Net weightkg840 1240 1300 1356 1720 19002000 2200 2300
Sound pressure levelsdB(A)69 70 70 7078 78818184

Factory view
Rooftop Packaged Air Conditioner Price/ Heating and Cooling System Rooftop Unit
Production machinery
Rooftop Packaged Air Conditioner Price/ Heating and Cooling System Rooftop Unit
Test lab
Rooftop Packaged Air Conditioner Price/ Heating and Cooling System Rooftop Unit
Rooftop packaged unit production line
Rooftop Packaged Air Conditioner Price/ Heating and Cooling System Rooftop Unit
