Welcome to EASVIOR (Guangzhou) Green Energy Co.,LTD.
Our company is a Excellent,Serious,Responsible,Professional,Reliable manufacturer & supplier of integrated all in one LED solar street lights 5W to 200W.
If have any inquiries, welcome to contact us directly or to visit our websites: esavior.en.made-in-china.com or esavior.en.made-in-china.com to get more infomations.

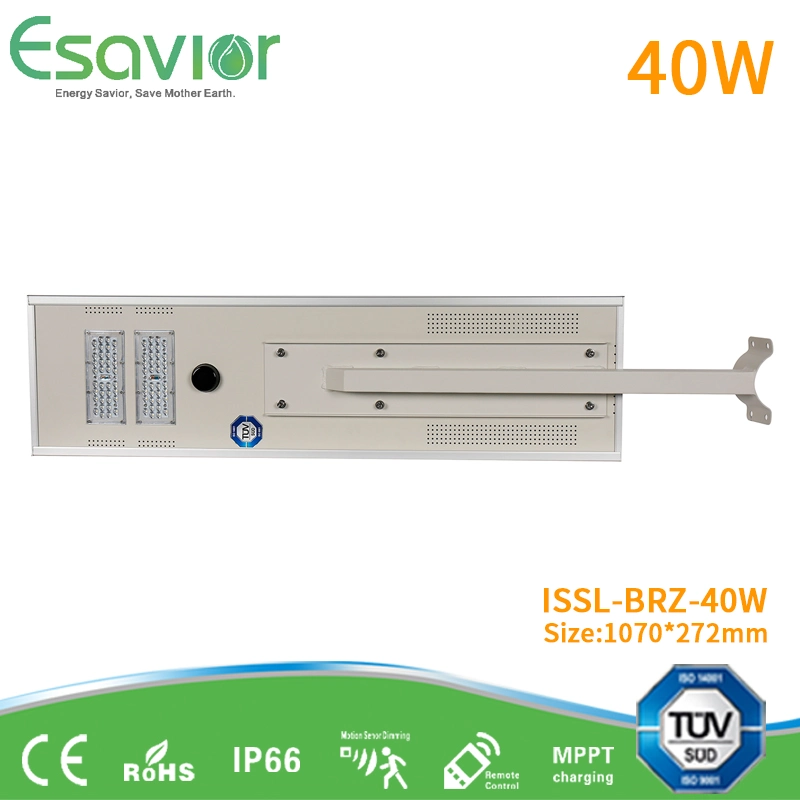

Outdoor Road Solar Lamp 40W 4000lm All In One Solar LED Street Light Chinese Manufacturer
Product Technical Specification
Product Advantages
Wireless Application:
Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.
Micro-Computer Controlled:
Combine light control system and time control system perfectly, ensure whole system more energy-efficient.
Easy Installation:
No power required, no cables required, easy installation in 5 minutes.
Good Heat Dissipation:
The shell is aluminum with scientific cooling hole, and also built-in aluminum block on the back of the light source to support good heat dissipation .
Extreme light:
Light efficiency reach 195 lm/w, at same watt ,more Bright ,lighting area is expanded and more uniformity
Lithium battery:
Adopt LiFePO4 lithium battery to replace MnNiCo lithium battery, more than 8 years lifespan,longer lifetime.
Modular design:
All components are modular design and in standardized production. Battery can be easily replaced if needed.
Low cost:
Compared with traditional solar led lights, much lower cost, easy to transport.

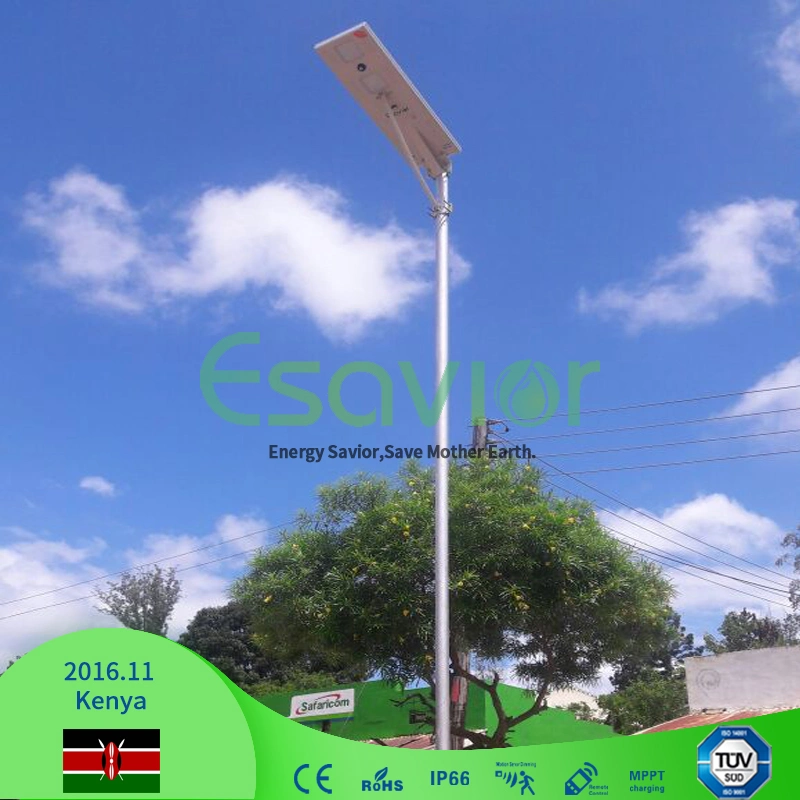

Customer Projects Show
Our Certificates
Our Factory & Workshop
Customer Photos & Exhibitions
FAQ
Q1:Does the lamp light on automatically?
A:Yes, it will light on automatically at darkness no matter which mode except "OFF".
Q2:Can I order samples for solar street light?
A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3:What about the lead time?
A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).
Q4:Do you offer guarantee for the products?
A:Yes, we offer 3-5 years warranty to our products.
Q5:Can the lamp be used in strong wind environment?
A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.
Q6:What's the difference between Motion sensor and PIR sensor?
A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.
Q7:How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.
Why choose ESAVIOR?
1. Exceeded 10 years' experience in with global successful projects reference on the LED Solar Lighting field.
2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.
3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.
4. More than 90 countries' clients enjoy our all in one LED solar street lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.
5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.
Thank you for your attention! If there are any questions or needs,feel free to contact us please!
Our company is a Excellent,Serious,Responsible,Professional,Reliable manufacturer & supplier of integrated all in one LED solar street lights 5W to 200W.
If have any inquiries, welcome to contact us directly or to visit our websites: esavior.en.made-in-china.com or esavior.en.made-in-china.com to get more infomations.
Outdoor Road Solar Lamp 40W 4000lm All In One Solar LED Street Light Chinese Manufacturer
Product Technical Specification
| SUPERIOR (BRONZE) Series | MODEL NO. ISSL-BRZ-40W | |||
| Solar Panel | Power | 18V/60Wp (High Efficiency Monocrystalline PV) | ||
| Life-span | 25 years | |||
| Batteries | Capacity/Type | 12.8V/18AH (268.80WH) / LiFePO4 Lithium | ||
| Life-span | 8+ years (2,000 circles) | |||
| Controller | Type | MPPT / Waterproof class: IP68 | ||
| Sensor | Microwave Radar ( PIR & Timing as optional ) | |||
| LED Light Source | Rated Power | 12V/40W (20 LEDs X 2 Modules) | ||
| LED Brand | (LED Lumen:195lm/W) | |||
| Lumens(LM) | 3600-4000lm | |||
| Life-span | 100,000 hours | |||
| Viewing Angle | 140° | |||
| Full Charge Time | By Solar | 5 hours | ||
| Discharge Time | Bright Mode | >12 hours | ||
| Dim Mode | >60 hours | |||
| Working Temp. | -30ºC~+80ºC | |||
| Color Temp. | Cool White 6000K (6000~6500k) / (Warm White 3000K, 4000K available) | |||
| Mounting Height | 6-7m | |||
| Space Between Lights | 25~30m | |||
| Materials | aluminium alloy | |||
| Certificate | CE / ROHS / IP66 | |||
| Warranty | 3 years | |||
| Packing & Weight | Product Size | 1135*295*140mm | ||
| Net Weight | 15.5kg | |||
| Carton Type | Customary Carton/ OEM Acceptable | |||
| Carton size | 1190*360*210mm | |||
| Qty/ctn | 1pc per CTN | |||
| GW. per Carton | 17.0kg | |||
| PCS per Container | 20' GP | 310pcs | ||
| 40' GP | 710pcs | |||
Product Advantages
Wireless Application:
Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.
Micro-Computer Controlled:
Combine light control system and time control system perfectly, ensure whole system more energy-efficient.
Easy Installation:
No power required, no cables required, easy installation in 5 minutes.
Good Heat Dissipation:
The shell is aluminum with scientific cooling hole, and also built-in aluminum block on the back of the light source to support good heat dissipation .
Extreme light:
Light efficiency reach 195 lm/w, at same watt ,more Bright ,lighting area is expanded and more uniformity
Lithium battery:
Adopt LiFePO4 lithium battery to replace MnNiCo lithium battery, more than 8 years lifespan,longer lifetime.
Modular design:
All components are modular design and in standardized production. Battery can be easily replaced if needed.
Low cost:
Compared with traditional solar led lights, much lower cost, easy to transport.
Customer Projects Show
Our Certificates
Our Factory & Workshop
Customer Photos & Exhibitions
FAQ
Q1:Does the lamp light on automatically?
A:Yes, it will light on automatically at darkness no matter which mode except "OFF".
Q2:Can I order samples for solar street light?
A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3:What about the lead time?
A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).
Q4:Do you offer guarantee for the products?
A:Yes, we offer 3-5 years warranty to our products.
Q5:Can the lamp be used in strong wind environment?
A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.
Q6:What's the difference between Motion sensor and PIR sensor?
A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.
Q7:How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.05%.Secondly, during the guarantee period, we will send replacements with new order for small quantity.
Why choose ESAVIOR?
1. Exceeded 10 years' experience in with global successful projects reference on the LED Solar Lighting field.
2. 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.
3. ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHs/IP66 certificates.
4. More than 90 countries' clients enjoy our all in one LED solar street lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.
5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.
Thank you for your attention! If there are any questions or needs,feel free to contact us please!
