Introduction of biomass fuel
Biomass is fuel that is developed from organic materials, a renewable and sustainable source of energy used to create electricity or other forms of power.
Raw material and biomass pellets
Sawdust ,wood logs, wood chips, waste wood, bark, straw ,wheat straw ,rice husk, cotton stalk,coconut slag, sunflower stalk, olive slag, grassy, bamboo,, paper, cassava, EFB, peanut shell ,corn cob, soybean stalk, weed, wood branches, leaves and so on.
MZLH420 sawdust pellet mill features
1.It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2.The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of light substances with the density of 0.15-0.65g/cm3;
3.Feeder,conditioner and chute are made of stainless steel with long service life;
4.It is with magnet and over load protection system which can protect machine well during production;
5.It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;
6.The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.
MZLH Series biomass pellet machine technical parameters
Model | MZLH420 | MZLH508 | MZLH680 |
| Capacity(t/h) | 1-1.5 | 1.5-1.8 | 2-3 |
| Main Motor Power(kw) | 75/90 | 110/132 | 185/200 |
| Feeder Power(kw) | 2.2 | 3 | 4 |
| Forced Feeder(kw) | 1.1 | 1.5 | 1.5 |
| Inner Diameter of Ring Die(mm) | 420 | 508 | 688 |
| Pellet Diameter(mm) | 6-10 | 6-10 | 6-10 |
MZLH420 sludge wood sawdust pellet machine show
Complete Korea 12 t/h sludge wood sawdust pellet production line show

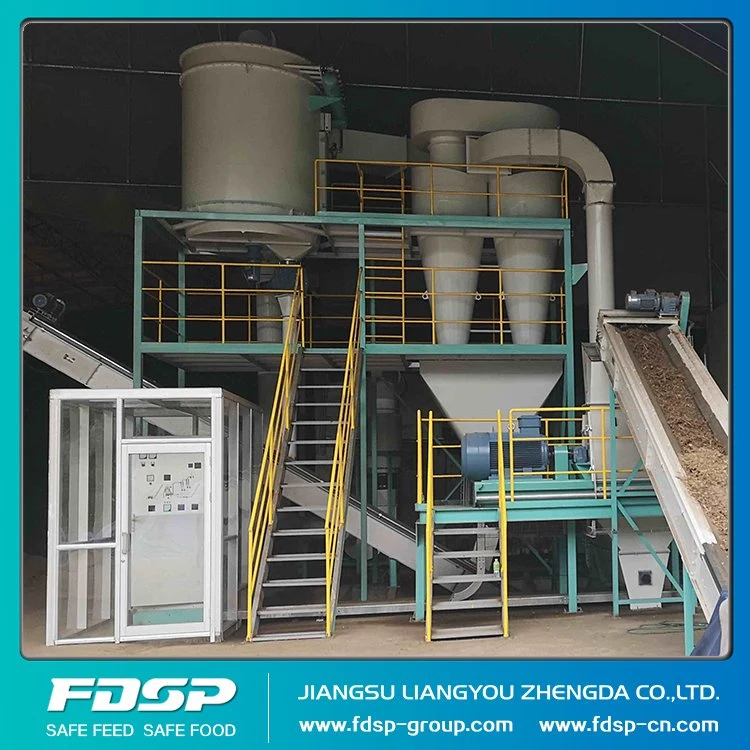

1.Grinding process
The pulverized raw material is wood chips and the hammer mill is used to pulverize the wood chips into sawdust with the auxiliary equipment such as fan, cyclone as well as pulse dust collector .The output is 6-8 TPH .The wind net dust removal system can effectively control the workshop dust pollution.
2.Storage process
The customer stores the municipal sludge mixed with wood chips in the buffer tank which can effectively reduce pollution and improve the automation of the production line.
3.Granulation process
The customer's raw material is a mixture of municipal sludge and wood chips. At present, there are 3 granulators production line, 3 granulators are reserved.The total output is 12tph and the output of single pellet mill is 2tph.The output is high. The granulation workshop is designed as the clean room. All conveying equipment and its import and export are closed structures, which effectively reduce the dust pollution in the workshop.
Produced sludge sawdust pellets display
4.Cooling and screening process
The granulator discharge temperature is about 80-90 ° C, and the cooler can effectively reduce the particle temperature to 5 ° C not higher than room temperature. The vibrating screen can effectively clean the powder and scrap in the finished granules so that the finished granules are more beautiful.
5.Electric control system
Part of finished biomass pellet production line
1TPH Sawdust Drying Line( Latvia)
2TPH Grass Drying Line (Russia)
3-4TPH Straw Pellet Line (Malaysia)
3-4TPH Wood waste Pellet Line (Malaysia)
3-4TPH Straw Grinding Line (Romania)
3TPH Sawdust Drying Line (Malaysia)
6-8TPH Rice Husk Pellet Line (Philippines)
15TPH Wood Pelleting Line (Brazil)
.............................................
