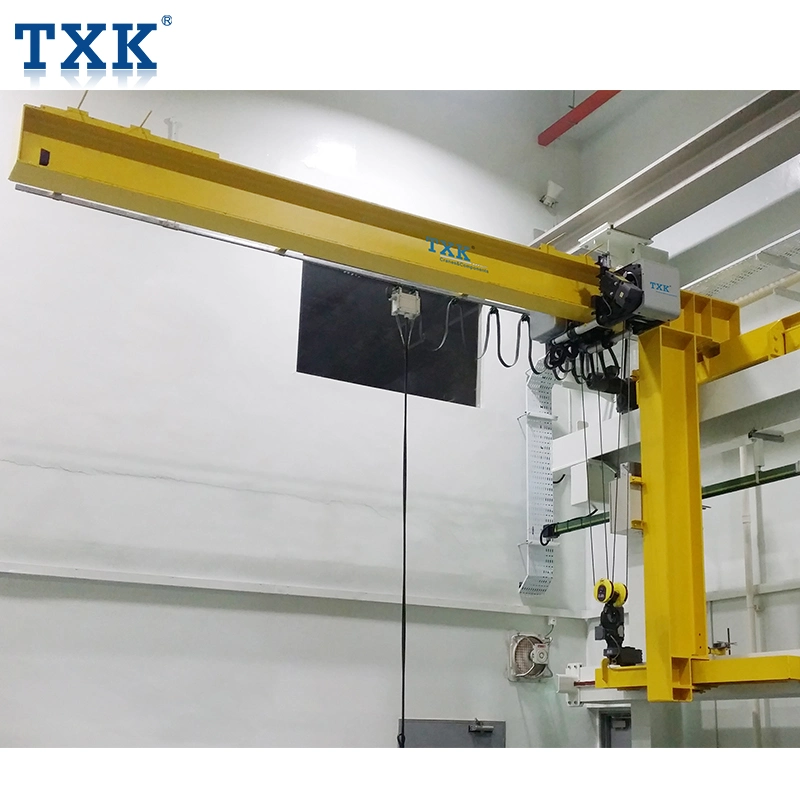

270 degree slewing jib crane with Ce/SGS certificate

Features:1. Rated Lifting capacity: 0.5~20t2. Arm length: 2~10m (Can be designed by customers)3.Two types : BZ model(light medium) and BZD model(heavy duty medium)4. Working Temperature: -25~+40°C5. Lifting mechanism: Electric hoists or manual hoist6. Slewing Mechanism: Electric motor or Manual control 7. Main

Featured Products

270 Degree Rotate Boom Crane with Ce/SGS Certificate
270 Degree Rotate Boom Crane with Ce/SGS Certificate


Features:


1. Rated Lifting capacity: 0.5~20t

2. Arm length: 2~10m (Can be designed by customers)
3.Two types : BZ model(light medium) and BZD model(heavy duty medium)
4. Working Temperature: -25~+40°C
5. Lifting mechanism: Electric hoists or manual hoist
6. Slewing Mechanism: Electric motor or Manual control
7. Main Material: Q235B Mn Steel
8. Slewing angle are 90, 180, 270, 360 degree is optional



Technical Specification:

Lifting capacity (T)1,2,3,5,10,16,20
Span(M)7.5-22.5
Mechanism travellingspeed (m/min)10,20,3045,60
motortypeZDY1  21-4ZDR12-4
power (kw)2X0.82X1.5
speed (r/min)13801380
Electric chain hoist /
wire rope hoist
modelCD1/MD1/SSDHL
lifting height (m)6,9,12,18,24,30
traversing speed (m/min)20,30
lifting speed (m/min)8(7);8/0.8(7/0.7)
Work classificationA3-A5
Power supply380v/50hz
Diameter of wheelΦ300mm
Railp18,p22,p24,p30



Parts pictures:

270 Degree Rotate Boom Crane with Ce/SGS Certificate



Packages:

270 Degree Rotate Boom Crane with Ce/SGS Certificate




270 Degree Rotate Boom Crane with Ce/SGS Certificate



270 Degree Rotate Boom Crane with Ce/SGS Certificate


FAQ:

Q. What's the information should I provide when send you an inquiry?
A:Lift capacity,    span,    lift height,     power supply & control voltage

Q. Can this type of jib crane work in hazardous environment?
A:Sure! We can customize it for you, acid proof or explosion proof, no problem for that.

Q. Can you provide related lifting tools that we might need?
A:Sure, we can provide any lifting tools, such as sling belt, lift clamp, grab, magnet lifter or others as your requirement.

Q. How to install the crane?
A:We will give you installation drawing or send engineer to your site.

Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
