Product Details:
Other Models:
Company Information:
Qingdao Haylite Machinery have been exporting tent and greenhouse since 1993, our products have qualified ISO 9001, and were well-known by our worldwide customers for quality products with low prices.
Our factory covers more than 56,000 square meters, owing CNC punching machine, CNC plate bending machine, CNC plasma cutting machine, CNC Laser cutting machine, Plate Bending Machine, Plate Clipping Machine, Pipe Bending Machines, Pipe Swaging Machines, Punching Machines and Welding Machines. With professional team and equipment, Haylite can offer you professional service.

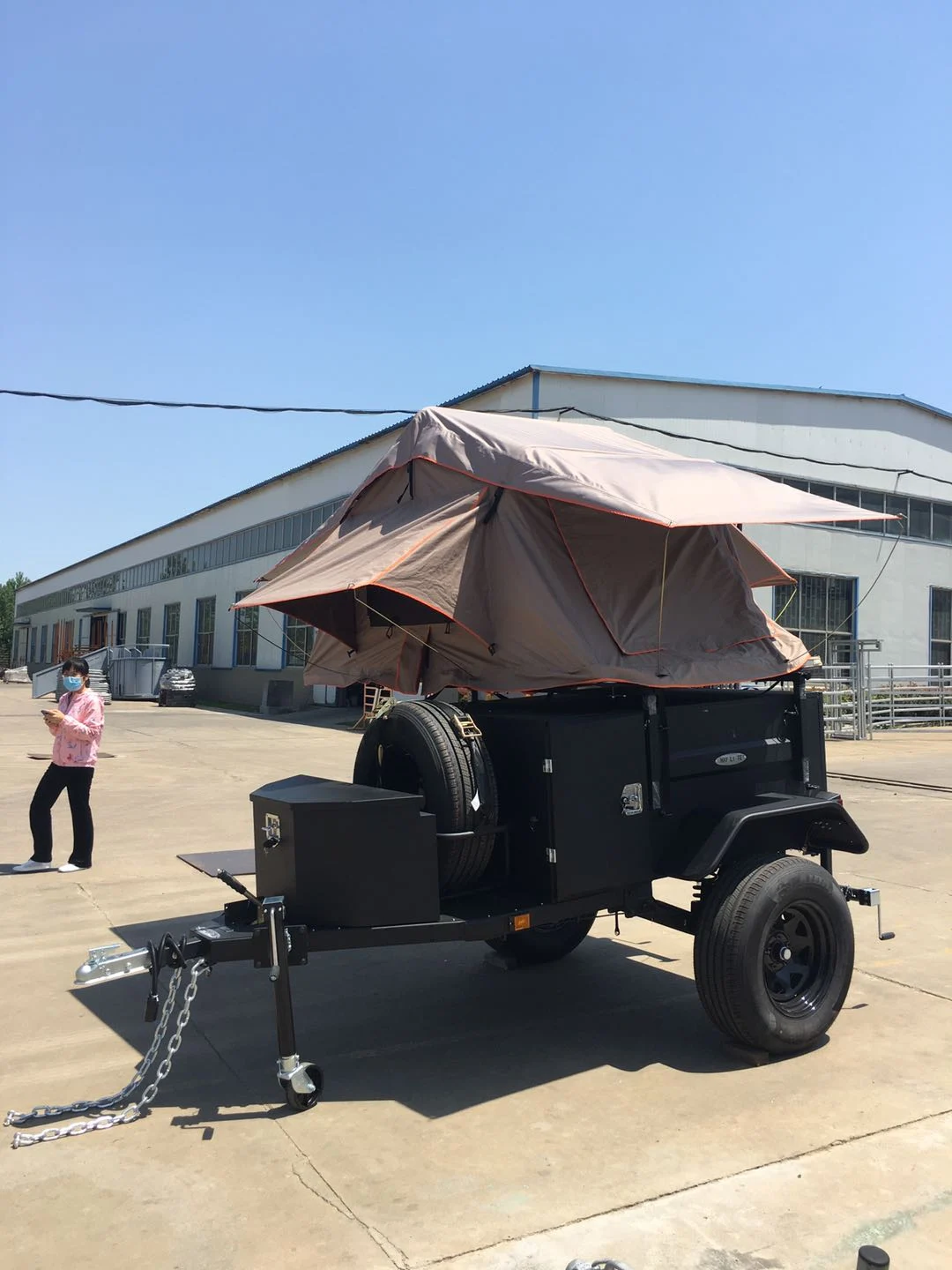

| Model: Camper Trailer HLT-07 Specification: Size:7ft*4ft Size of box :2035*1210*500mm Material of pipe:75*50*3mm+50*50*2.5mm Loading capacity:1.5t Surface treatment:Hot dip galvanized Weight of camper trailer :450kgs Weight of camper trailer +tent:500kgs Loading info: 6PCS/20'GP Overall Configuration: 180 degree continuous adjustable rotatable fixed leg. 2*25L portable tank bracket, with locking device. 1*9KG liquefied petroleum gas holder, with locking device. The tail gate with 304 stainless steel cooking bench with water tap and water inlet. With a 70 litre Stainless steel water tank, Equipped with electric water pump, Aluminum storage box, 1300x460x500mm Height of trailer:1100mm,height of box :500mm 3 PCS of 14 "hot galvanized tires Anti stone metal mesh, Frame floor 3mm thickness diamond plate zinc dipping treatment, Detachable Fork Australian type connector Chassis suspension system :The 5 big truck leaf spring. With shock damping function The brake device :Electric brake and hand brake combination Led taillights 7 hole plug Tent Configuration: Bed: 18cm thick plywood, with 4 hinge, 2 entrance. The mat: high density foam pad, 8cm thick. PVC main tent bottom: 450g/m2, lattice PVC, Supporting rod: diameter 19/22/25mm, wall thickness 1.0mm, Dust cover: Design of 450g/m2 lattice PVC, dust-proof, zip and hasps, three tablets. Solarium bottom: 120g PE, four angle with a nylon hasp. Galvanized ladder with pad, to prevent wear tent. Solarium through zippers and Velcro remove, Carton packaging. Note: The gas stove, oil tank, gas bottle and refrigerator are not included in the price. |
Other Models:
| Model: Camper Trailer HLT-04 Technical specification: Dimensions: 7FTX6FT The main body size: Outer box 2200mm(L)x1750mm(W)x600mm(H) Inner box size:1940mm(L)x1670mm(W)x520mm(H) Extra heavy duty off road chassis: 50x50x2.5mm square tube Drawing bar length:1650mm(100x50x50mm tube) Ground clearance: 530mm Trailer weight:710kg Surface finish: fully powder coated finish Suspension: 6-leaf shackle heavy duty springs 45x6mm ( eye-to eye type) with 10 electric brake Wheel: Three new off road 235/75R15 tires with 6 studs steel Ford rim Jockey wheel: heavy duty solid steel style Protection: All access doors are lockable and sealed for water/dust proof Tent: High quality 12OZ canvas roof and side walls. Sand fly & midge proof window screen Cooker system: Stainless steel kitchen top and stainless steel sink Water system: 70L Stainless steel water tank(1120mmx480mmx130mm ) and electric water pump Coupling: loading capacity--3500KG; unit weight--10KG; In accordance with the Australian standard Handbrake: hand braking with coupling Wheel & tire: 15 rims and 235/75R15 tires, stud hubs (including 1 spare tire); In accordance with the Australian standard and DOT standard Axle: Dia.45mm solid round axle, capacity--2500KG Trailer plug:7-pin round or flat plugs as per Australian standard LED taillight Winch: PP webbing 8m used to wind camper closed, loading capacity--1000KG Gas strut: lift up bed base to hold open Tool box: 1100mm(L)x450mm(W)x500mm(H) Drawer: Two drawers 1X Gas bottle holder: standard 9KG gas bottle holder 1x20L standard Jerry can holder 2x wind down rear stabilizer legs Attention: Jerry can, gas bottle and gas stove/burner are not supplied Gas burner dimension: 580mm(L)x500mm(W)x115mm(H) Gas burner is to be sourced by the importer himself Note: trailers can be custom-made as per customers unique requirements |
Company Information:
Qingdao Haylite Machinery have been exporting tent and greenhouse since 1993, our products have qualified ISO 9001, and were well-known by our worldwide customers for quality products with low prices.
Our factory covers more than 56,000 square meters, owing CNC punching machine, CNC plate bending machine, CNC plasma cutting machine, CNC Laser cutting machine, Plate Bending Machine, Plate Clipping Machine, Pipe Bending Machines, Pipe Swaging Machines, Punching Machines and Welding Machines. With professional team and equipment, Haylite can offer you professional service.
